UV Coating Machine

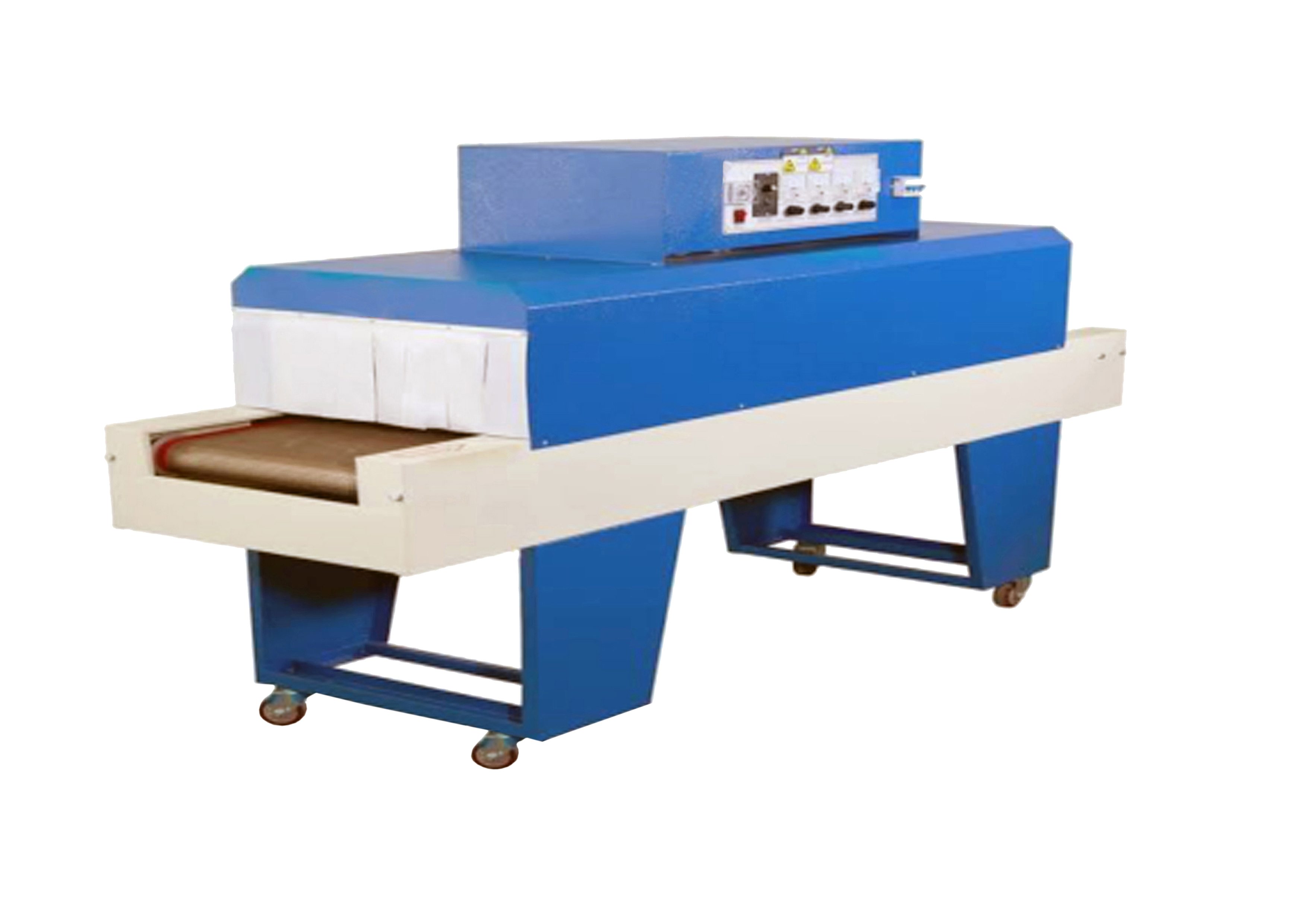

20 Inch UV Dryer Machine

The Codalam UV Dryer Machine is a high-performance industrial curing system built for the rapid drying and instant curing of UV coatings already applied to a wide range of flat substrates. It is designed for professional print finishing and surface coating workflows, and is commonly used on posters, photographs, wedding album sheets, art prints, book covers, packaging boxes, MDF boards, wooden panels, acrylic sheets, PVC sheets, and coated paper products.

20 Inch UV Dryer Machine

Product Description

The Codalam UV Dryer Machine is a high-performance industrial curing system built for the rapid drying and instant curing of UV coatings already applied to a wide range of flat substrates. It is designed for professional print finishing and surface coating workflows, and is commonly used on posters, photographs, wedding album sheets, art prints, book covers, packaging boxes, MDF boards, wooden panels, acrylic sheets, PVC sheets, and coated paper products. The machine runs a two-stage curing process. An infrared (IR) lamp first gently pre-heats the coated surface, removing residual moisture and solvents and improving how the coating levels out before curing. An ultraviolet (UV) lamp then instantly cures the coating, initiating polymerization that transforms the liquid coating into a hard, dry, protective layer within seconds. The combination produces faster drying, better coating flow and leveling, stronger adhesion, enhanced gloss, and higher scratch and water resistance than UV curing alone. Because it is a dedicated curing stage rather than a single fixed-size unit, the Codalam UV Dryer Machine is available across a range of working widths — 12, 18, 24, 36, and 52 inches, plus custom sizing — so it can be matched to the coating machine and production volume it is paired with. It runs on a 3kW single-phase UV lamp system, a 220V or 415V 50Hz power supply, and an air-cooled exhaust system, all housed in a heavy-duty powder-coated steel body built for continuous industrial use. Whether you run a photo lab, printing press, packaging operation, advertising agency, sign-making business, wedding album production unit, or furniture and interior panel manufacturer, the Codalam UV Dryer Machine provides the fast, consistent curing stage needed to keep UV-coated production moving without drying-time bottlenecks.

Key Features

  • Two-Stage IR + UV Curing
  • Available in Multiple Working Widths
  • 3kW Single-Phase UV Lamp System
  • Adjustable Conveyor Speed
  • Gloss and Matte Compatible
  • Air-Cooled Exhaust System
  • Broad Material Compatibility
  • Faster Drying Than UV Alone
  • Enhanced Gloss & Scratch Resistance
  • Air-Cooled Exhaust System
  • Pairs With Any Coating Line
  • Removes Drying-Time Bottlenecks

Technical Specifications

BrandCodalam
Ideal ForPairing With a UV Coating Machine as the Dedicated Curing Stage in a Print or Packaging Finishing Line.
Finish TypeCompatible With Gloss and Matte UV Coatings
ConstructionHeavy-Duty Powder-Coated Steel Body
Machine TypeIndustrial UV Coating Curing / Drying Machine
Power Supply220V or 415V, 50 Hz
SpecificationUV Dryer Machine (IR + UV Curing System)
UV Lamp Power3 kW, Single Phase
Working Width12″, 18″, 24″, 36″, 52″, and Custom Sizes
Cooling SystemAir-Cooled Exhaust and Ventilation
Conveyor SystemMotorized, Adjustable Variable Speed
Country of OriginMade in India
Industries ServedPhoto Labs, Digital Printing, Packaging, Signage, Advertising, Wedding Album Production, Furniture Finishing
Working PrincipleTwo-Stage — IR Pre-Heat Followed By UV Instant Cure
Compatible MaterialsPaper, Coated Paper, Cardboard, Photographs, MDF, Wood, Arylic, PVC, Display Boards

Request pricing and availability

Send your application details and expected volume. We will share a suitable configuration and a quotation.
